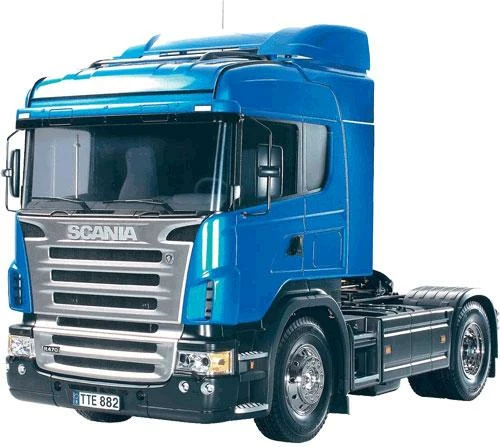

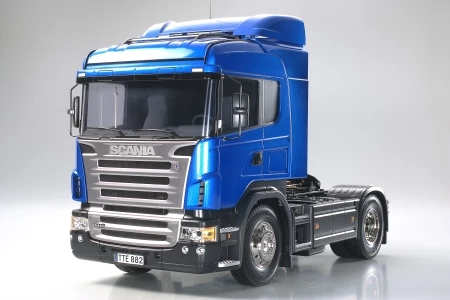

It has been a long time in coming, butTamiya has heard the demand from fansaround the world and is now proud topresent award-winning truck makerScania s state-of-the-art R470 Highline asthe newest addition to our unique 1/14scale R/C tractor truck series.

About the Scania R470 Highline Swedish manufacturer Scania has a longhistory of producing exceptional trucksdesigned for long-haul transport. Thecompany s R-series made its debut in 2004 and quickly built a highly favorable reputation thatled to it being given the prestigious International Truck of the Year award in 2005.

Click here to see how the 3Speed transmission works on this vehicle.

Specs & Features

• Length: 452mm
• Width: 187mm
• Height: 293mm
• Weight Fully-Equipped: about 3,1kg (without multi function unit)
• Wheelbase: 272mm
• Tread F/R: 156/138mm
• Tire Width: F/R both 22mm
• Tire Diameter: F/R both 83mm
• Chassis Material: Aluminum and polycarbonate plastic
• Chassis Shape: Ladder Type Frame
• Suspension: Front and Rear Rigid Axle w/Metal Leaf Springs
• Caster Angle-F/R: 0deg/0deg
• Camber Angle-F/R: 0deg/0deg
• Toe Angle-F/R: 0deg/0deg
• Damper: F/R Aluminum Dummy Dampers
• Drive train: 2-axle
• Transmission: 3-gear transmission (gear shifting operated via transmitter)
• Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
• Diff. gear system: F/R Bevel Gear Diff
• Engine: Electric 540
• Body Type: Styrene(plastic)

  Required:

• 4-channel system is recommended for potential future options and 3-speed operation.
• 7.2V battery and charger
• ESC (unless you are using MFC Unit #56511)



Spec

• Brand: Tamiya
• Part No: HC-56318
• Barcode: 4950344563180
• Scale: 1:14
• Surface Type: On Road
• Vehicle Type: Tractor Unit
• Build Level: Unassembled (Kit)
