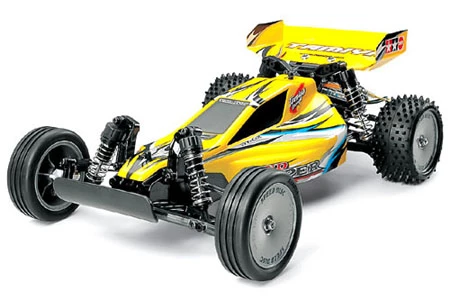

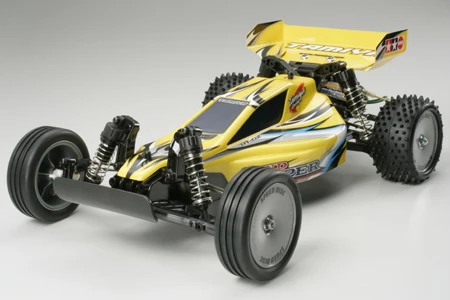

Introducing Tamiya s newest release on the DT-02 chassis, Sand-Viper! This 1/10 scale 2WDassembly off-road buggy continues in the vein of our successful Desert Gator buggy, but willfeature an all-new body and wing shape, together with dish type wheels. Versatile andreliable DT-02 chassis features transverse mounted Type RS540 motor and 4-wheel doublewishbone suspension. Full ball bearings ensure maximum efficiency and a long-life of dirt tearingaction!

Tamiya Sand Viper DT-02 Features:

• High performance 2WD off road buggy assembly kit.
• 4-wheel independent double wishbone suspension with oil dampers secures stable running.
• Suspension upper arms use double-ended shafts, enabling fully adjustable camber angle.
• TEU-101BK electronic speed control included with kit.
• Type 540 motor.
• Differential gear gearbox is fully sealed from dirt and stones, ensuring a long life of smoothhandling.
• Drive shaft features joint cup made of highly durable metal.
• Full ball bearing configuration offers maximum engine efficiency.
• Features wide grooved front tires and spiked rear tires for excellent off-road ability.
• Newly designed body and wing shape
• Wheels are racey off-road dish type

Tamiya Sand Viper DT-02 Specs:

• Length: 384mm
• Width: 248mm
• Height: 140mm
• Wheelbase: 260mm
• Lowest Ground Clearance: 26mm
• Weight: 1042g
• Motor: Type 540
• Drivetrain: Rear Wheel Drive
• Tread: (Front & Rear) 216mm/208mm
• Diff. Gear: 3-bevel diff.
• Steering Tie Rod: 2-piece
• Suspension: 4-wheel Double Wishbone
• Gear Ratio: 9.28:1
• Separately Required 2-Channel R/C System with ESC 7.2V Racing Battery & Charger



Spec

• Brand: Tamiya
• Part No: HC-58374
• Barcode: 4950344583744
• Scale: 1:10
• Vehicle Type: Buggy
• Power Source: Electric – Brushed
• Surface Type: Off Road
• Build Level: Unassembled (Kit)
