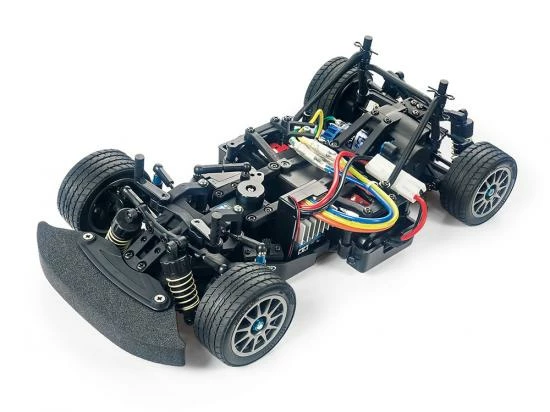

A GR8 M-Chassis Addition
This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbases. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for a ground hugging drive, and the front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.
Featured Components
– M-07 Concept design long suspension arms
– Oil-filled gear differential
– Universal drive shafts
– Turnbuckle upper arms
– Full ball bearings
– Hi-torque servo saver (black)
– Front caster angle is set by 0-degree suspension mount and 2-degree hub carrier components.
– Long suspension arms give a ground hugging drive, and inherit the M-07 Concept design.
– Features a forward position for the low-profile servo, plus a hi-torque servo saver included.
– The midship motor is positioned to as to provide valuable weight to the driven rear wheels.
– A 4-gear layout in the drivetrain ensures that inverse torque from the motor pushes down rear wheels.
– Separate front and rear sections of the main frame allow a choice of three different wheelbases.
– Use spacers in the rear suspension setup to make fine adjustments to the chassis’ toe angle.
– This chassis is compatible with square shaped battery packs such as the 7.2V Racing Pack.
– An overhead view shows off the perfectly-balanced form of the M-08 Concept and its compact RWD layout.
Specifications
– Length: 319mm (in M wheelbase), Width: 165mm,
– Choose between 210mm (S), 225mm (M) and 239mm (L) wheelbases
– Monocoque Frame
– Midship Motor, Rear-Wheel Drive
– Oil-Filled Gear Differential
– 3-Piece Steering Tie-Rod
– 4-Wheel Double Wishbone Suspension
– CVA Oil Dampers
– 8 potential gear ratios between 4.813:1 and 6.795:1 (kit-standard 20T pinion gear gives 5.776:1)
– Electronic Speed Controller (ESC) is sold separately.
Separately Required Items
– M-Chassis-compatible body
– Type 540 motor
– Tires
– 2-Channel R/C System w/ESC
– R6/AA/UM3 batteries for transmitter
– Battery Pack & Charger
Spec
- Brand: Tamiya
- Part No: HC-58669
- Barcode: 4950344586691
- Scale: 1:10
- Power Source: Electric – No Motor
- Surface Type: On Road
- Vehicle Type: Touring / Rally Car
- Build Level: Unassembled (Kit)
